SolarSpine PV-Spikes in silver made of stainless steel – self-adjusting – 0.5 m element

SolarSpine - self-adjusting PV spikes made of stainless steel - various heights - 0.5 m element

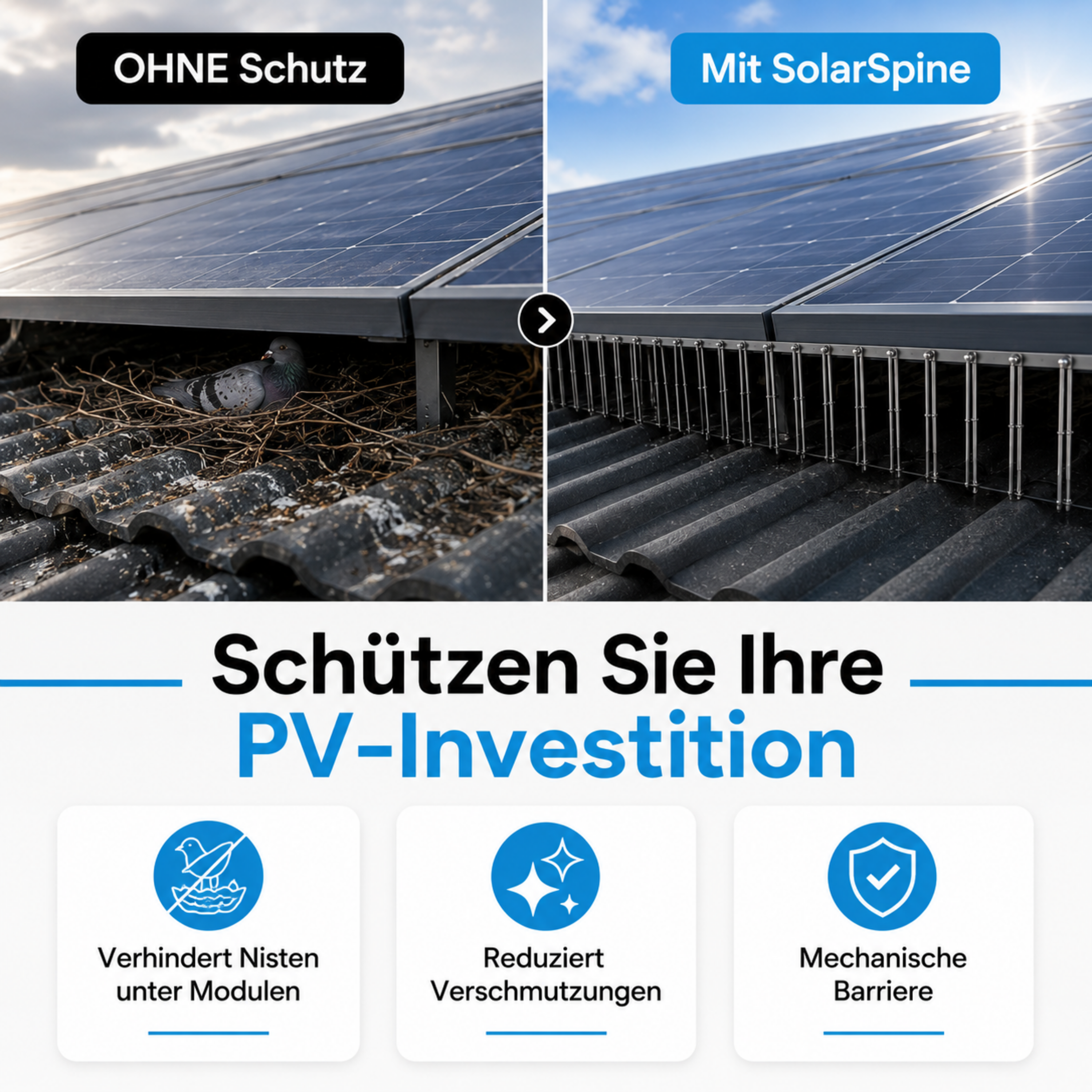

The single-row, self-adjusting PV spikes are specially designed for use on solar and photovoltaic modules. They effectively prevent pigeons and other birds from crawling under, nesting, and breeding between the roof and solar modules by providing a robust mechanical barrier.

The spikes have a rod thickness of 2.0 mm, a self-adjusting spike length of 110 mm (including strip 128 mm) or 170 mm (including strip 188 mm), and a regular spike spacing of 25 mm, with a length of 500 mm per element and high-quality manufacturing from 1.4301 stainless steel.

*The 50 cm elements are preferably mounted with the separately available clips (see here).*

Alternatively, the elements can also be bonded in the traditional way (with a lot of time) using a special adhesive. However, this should preferably be done in the early morning hours on clean, grease-free modules for the best adhesion. The adhesive should cover the entire surface of the strip body to ensure a secure connection.

You can choose from the following variants:

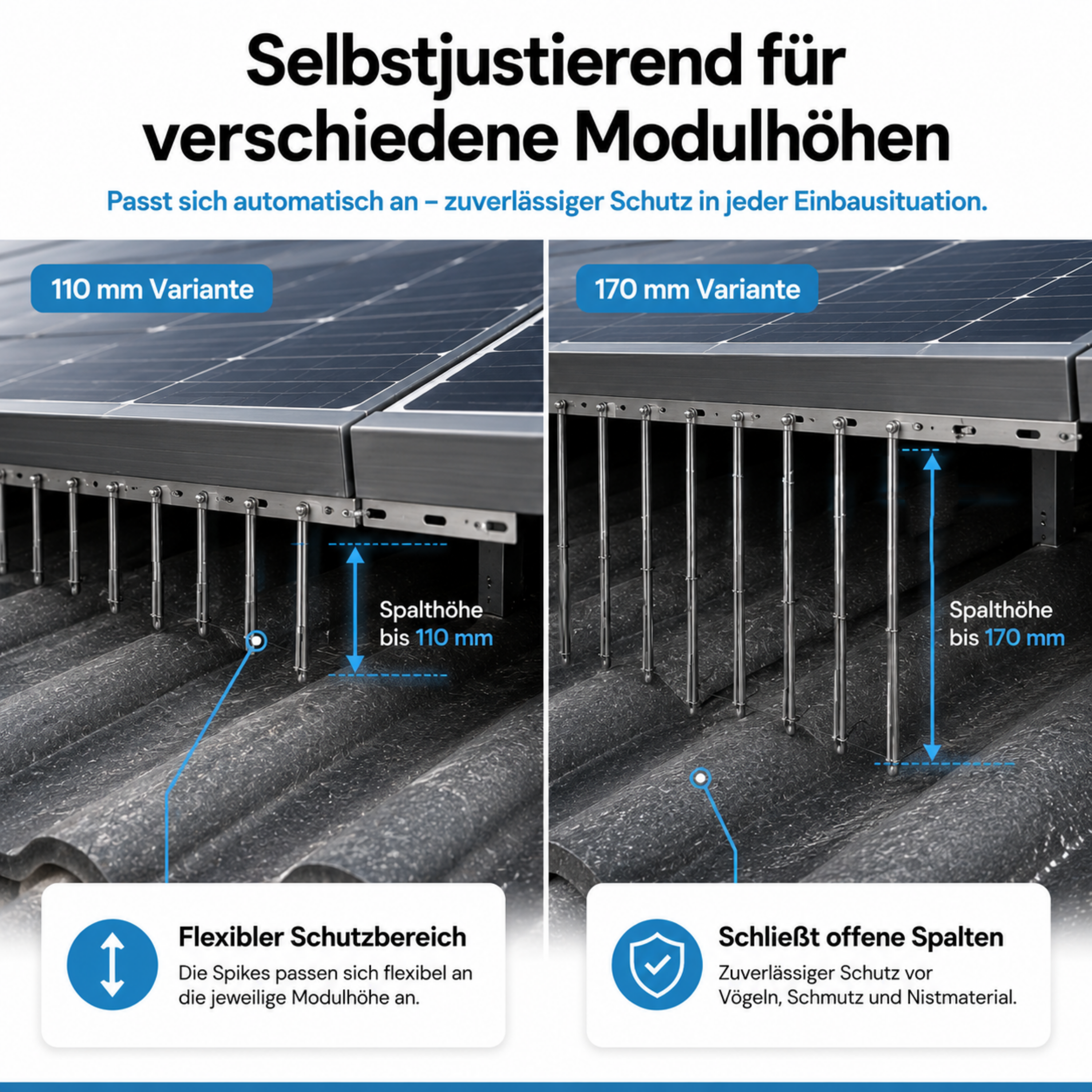

• Rod length for heights from 50 mm to 110 mm
• Rod length for heights from 80 mm to 170 mm



Technical data:

Product name: SolarSpine - self-adjusting PV spikes made of stainless steel
Available variants: 110 mm or 170 mm
Quantity per sales unit: 0.5 meters
Quantity per outer carton: 25 meters - consisting of 50 elements each 50 cm long
Attachment: using suitable clips or appropriate adhesive
Rod thickness of the spikes: 2.0 mm

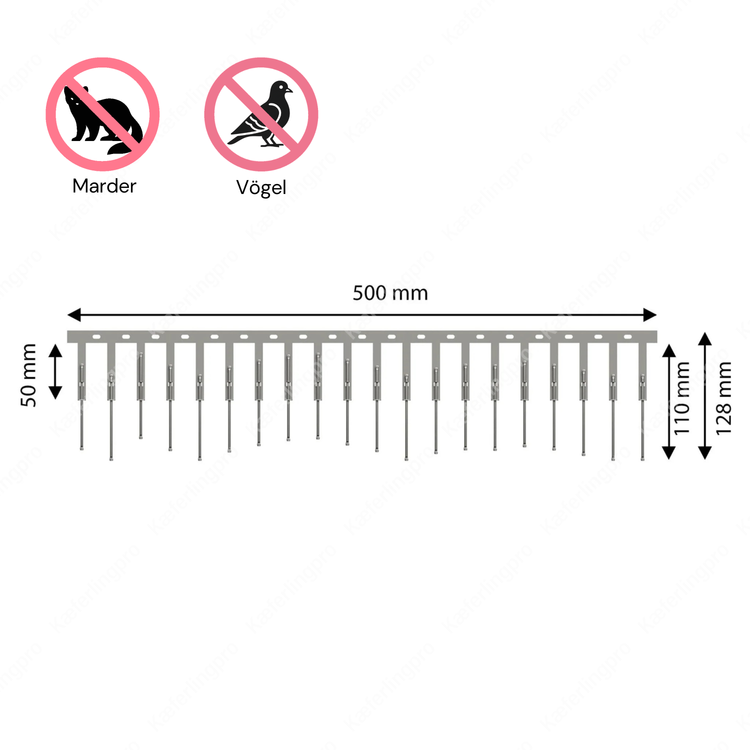

Rod length of spikes: 50 mm to 110 mm (128 mm with strip) or 80 mm to 170 mm (188 mm with strip)
Spike spacing: 25 mm

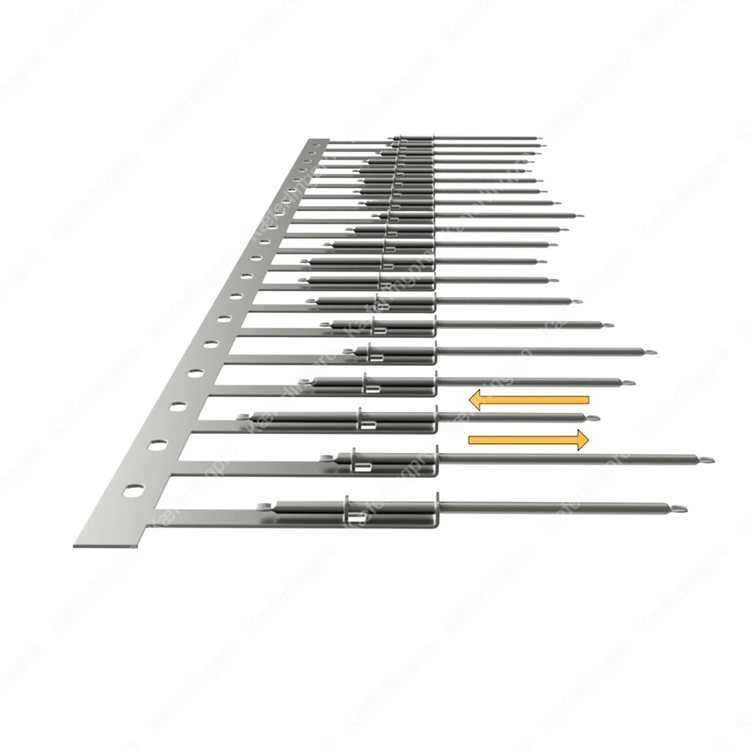

Technology: self-adjusting
Strip length: 500 mm (with 10 oval holes 4.2 x 10 mm)
Strip width: 18 mm + 50 mm
Strip thickness: 0.8 mm
Material: 1.4301 stainless steel rustproof - Surface untreated

Installation instructions / tips:

• For quick and worry-free installation, we recommend using the separately available clips
• Alternatively, bonding is also possible; please observe the following points:
  • Observe temperature: Do not bond on warm or hot modules. Start preferably in the early morning hours – especially in summer before the panels heat up.

  • Prepare surfaces: Thoroughly clean all surfaces before bonding. Use only alcohol-based cleaners or primers. The surface must be dust- and grease-free. Do not use solvents!
  • Ensure adhesion:
    • Bond fully – do not skimp on the adhesive.
    • Roughen profiles if necessary with a metal brush or sandpaper.
    • A cartridge can bond up to 12 m fully.
    • The adhesive should ooze out sideways and through the holes.
    • After bonding, a roughly 2 mm thick adhesive layer must remain between the solar system and the spikes to allow the materials to expand.
    • The modules remain undamaged during later removal.


• Alternative fastening: For older systems outside the warranty period, the PV spikes can also be screwed on using V2A screws (self-drilling). Be sure to check beforehand that no cables run behind the frame.

Installation instructions & information on PV pigeon deterrence:

→ More information on installation, application, and pigeon deterrence on solar systems can be found in our information flyer.

Frequently asked questions about SolarSpine PV spikes:

What are PV spikes used for?
PV spikes prevent pigeons and other birds from flying under, nesting, and breeding beneath solar modules.

For which solar systems are the PV spikes suitable?
The spikes are suitable for photovoltaic and solar systems on residential, commercial, and industrial buildings.

How are the PV spikes installed?
Installation is preferably done with matching clips. Alternatively, the elements can be bonded or screwed on older systems.

Are the PV spikes rustproof?
Yes, the SolarSpine PV spikes are made of high-quality 1.4301 stainless steel, rustproof.

Which variants are available?
The PV spikes are available with tip lengths for height ranges of 50–110 mm or 80–170 mm.

Why are self-adjusting PV spikes advantageous?
The self-adjusting technology flexibly adapts to different distances and conditions under solar modules.

Are the PV spikes suitable for black solar modules?
Yes, the black version is powder-coated in matte deep black (RAL 9005) and visually blends discreetly with black PV modules.

SolarSpine PV Spikes (self-adjusting, untreated stainless steel) – professional pigeon control / bird control for photovoltaic systems on commercial and residential buildings as well as in property and facility management. The single-row stainless steel spikes (1.4301, rustproof) prevent pigeons and other birds from crawling under, nesting, and breeding beneath PV/solar modules, protecting cables, substructures, roofing, and modules from dirt, damage from gnawing, and fire risk caused by bird droppings. Self-adjusting tips with 2.0 mm rod thickness, selectable height ranges of 50–110 mm or 80–170 mm, and 25 mm tip spacing ensure seamless protection even on uneven roofs. Delivery: 0.5 m (1 element of 50 cm). Quick and module-friendly installation using PV clips (recommended), alternatively full-surface bonding or screwing for older systems outside warranty. Ideal for solar installers, roofers, facility management, and professional pest control in the B2B sector.
